Practice 8: Spark GraphX - Analyze Bike Routes Data

The goal of this practice is to perfom basic graph analysis using the GraphFrames package available on spark-packages.org. We will analyze publicly available bike data from the Bay Area Bike Share portal.

Load Input Dataset

As an input we will have two inpu files: bike stations and bike trips.Let's load data to Spark's DataFrame:

   //Initialize SparkSession
    val sparkSession = SparkSession
      .builder()
      .appName("spark-sql-basic")
      .master("local[*]")
      .getOrCreate()

    //Read stations
    val stations = sparkSession.read
      .option("header", "true")
      .option("delimiter", ",")
      .option("nullValue", "")
      .option("treatEmptyValuesAsNulls", "true")
      .option("inferSchema", "true")
      .csv(stations_txt)

    stations.show()

Also load trips data to dataframe.

Stations dataframe:

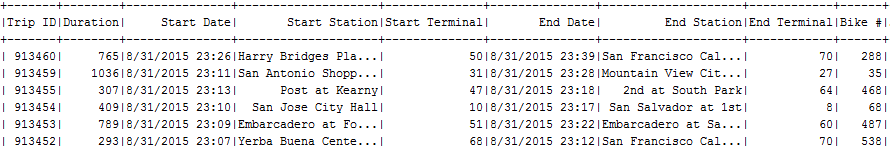

Trips dataframe:

Create Trips GraphFrame

GraphFrame as an extension of Spark GraphX by Databriks library. Please follow to get more information.

GraphFrames support general graph processing, similar to Apache Spark’s GraphX library. However, GraphFrames are built on top of Spark DataFrames

    //Create a graph
    val stationVertices = stations.withColumnRenamed("station_id", "id").distinct()
    val tripEdges = trips
      .withColumnRenamed("Start Terminal", "src")
      .withColumnRenamed("End Terminal", "dst")

    val stationGraph = GraphFrame(stationVertices, tripEdges)
    stationGraph.cache()

    stationGraph.triplets.show()

Carry out some analysis

1) Find the most popular bike stations via PageRank algorithm:

  val ranks = stationGraph.pageRank.resetProbability(0.15).maxIter(10).run()
  ranks.vertices.orderBy(desc("pagerank")).show()

2) Get the the most common destinations in the dataset from location to location

   //Get the the most common destinations in the dataset from location to location
    val topTrips = stationGraph
      .edges
      .groupBy("src", "dst")
      .count()
      .orderBy(desc("count"))
      .limit(10)

3) Find the stations with lots of inbound and outbound trips

    val inDeg = stationGraph.inDegrees
    inDeg.orderBy(desc("inDegree")).limit(5).show()

    val outDeg = stationGraph.outDegrees
    outDeg.orderBy(desc("outDegree")).limit(5).show()
